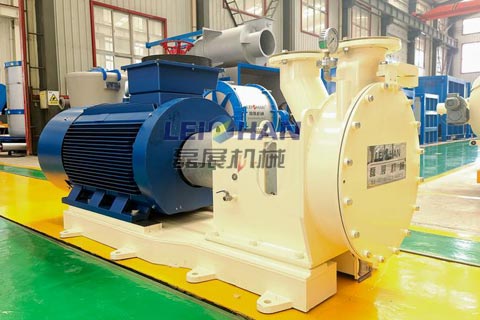

ZDJ Series Claflin Refiner

ZDJ Series Claflin Refiner is mainly applied for pulping in paper pulping system. Claflin Refiner can be used with double disc refiner in series.

Application & Features

1. With features of long refining area, fully process finer, strong ability to cut fiber.
2. Rotor and stator have variety toothed. Suitable various raw materials.

Main Specification

Type	Parameter
Size of Rotor(mm)	350
Taper Degree of Gear Ring(t/d)	600
Concentration of Input Pulp(%)	2-5
Production Capacity(t/d)	20-30
Motor Power(kw)	5
Speed of Motor(r/min)	970
